Water treatment

FLECK VALVES

FLECK 2510

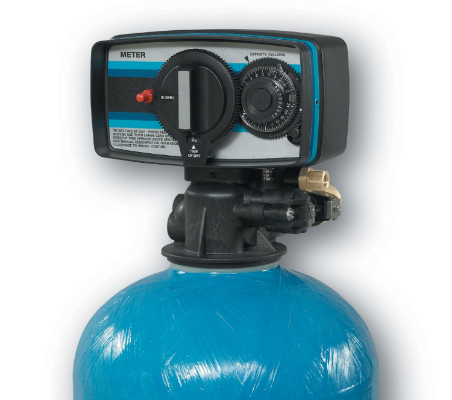

FLECK 5600

FLECK 9100

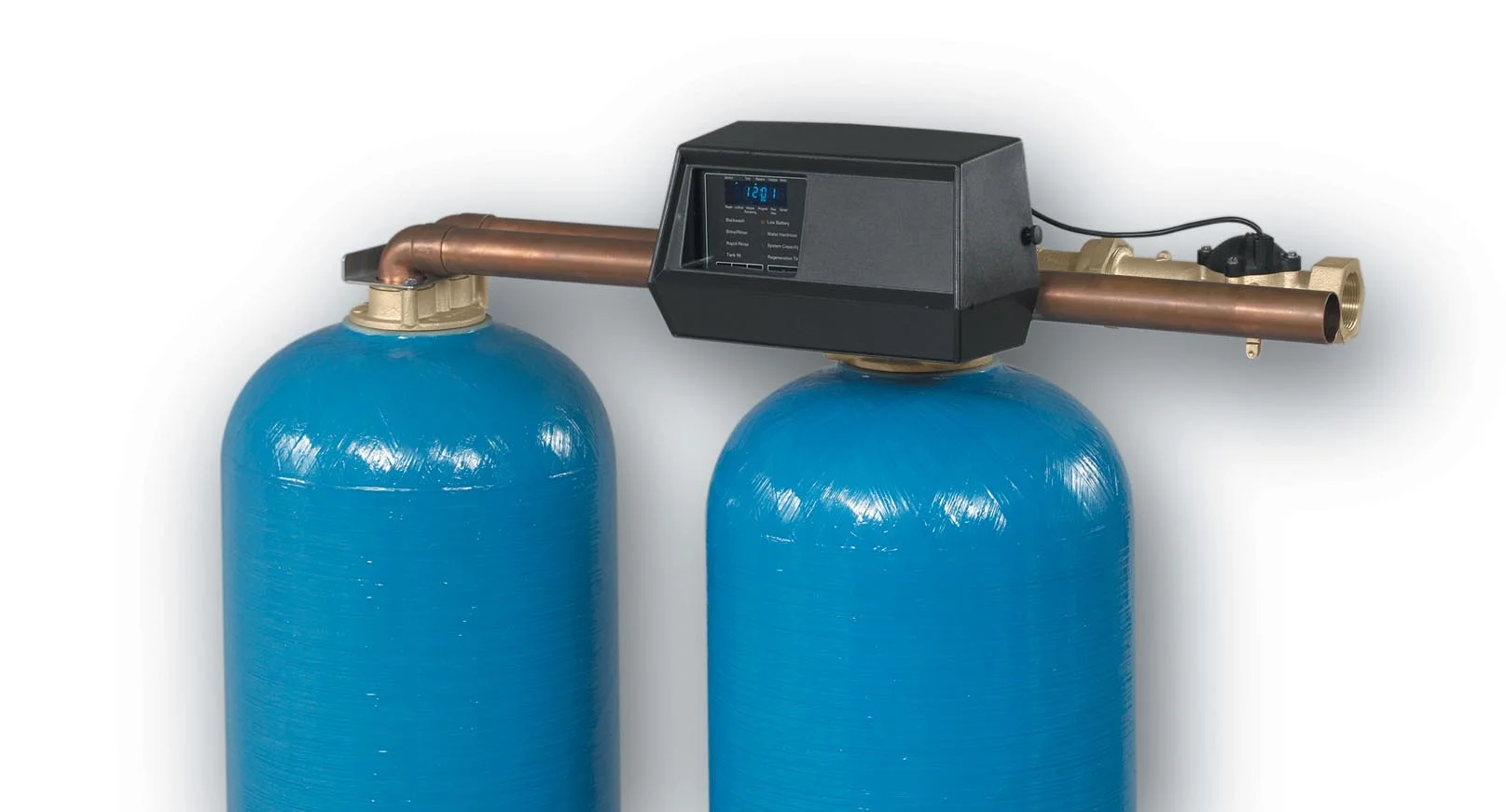

FLECK 9500

FLECK 9500

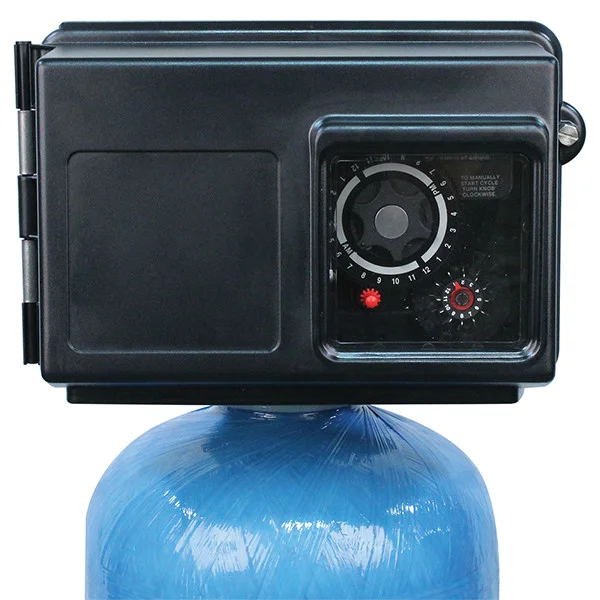

FLECK 2750

FLECK 2750

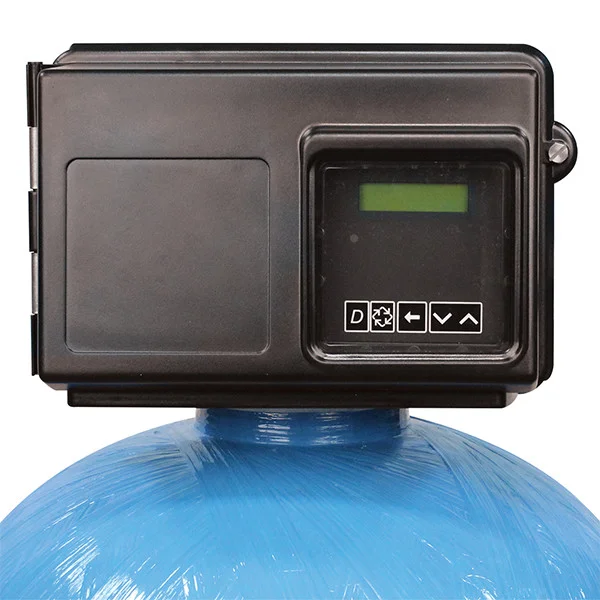

FLECK 2850

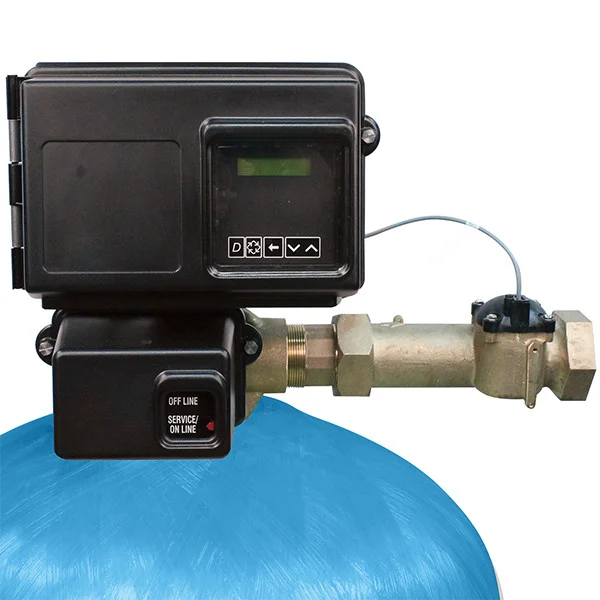

FLECK 2900

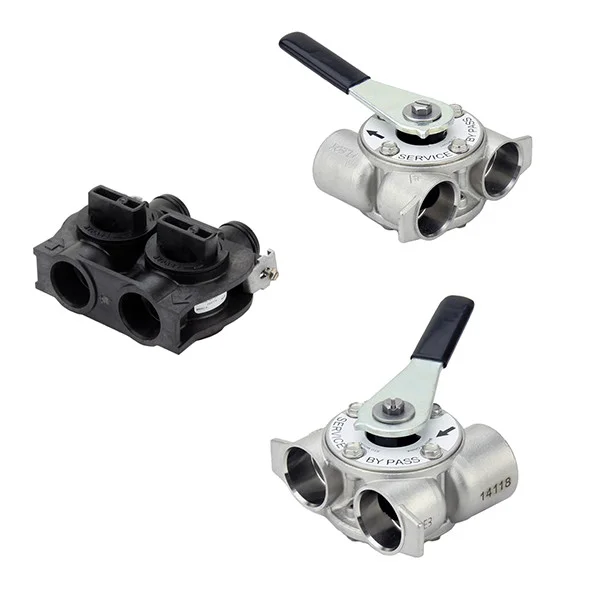

FLECK BYPASSES

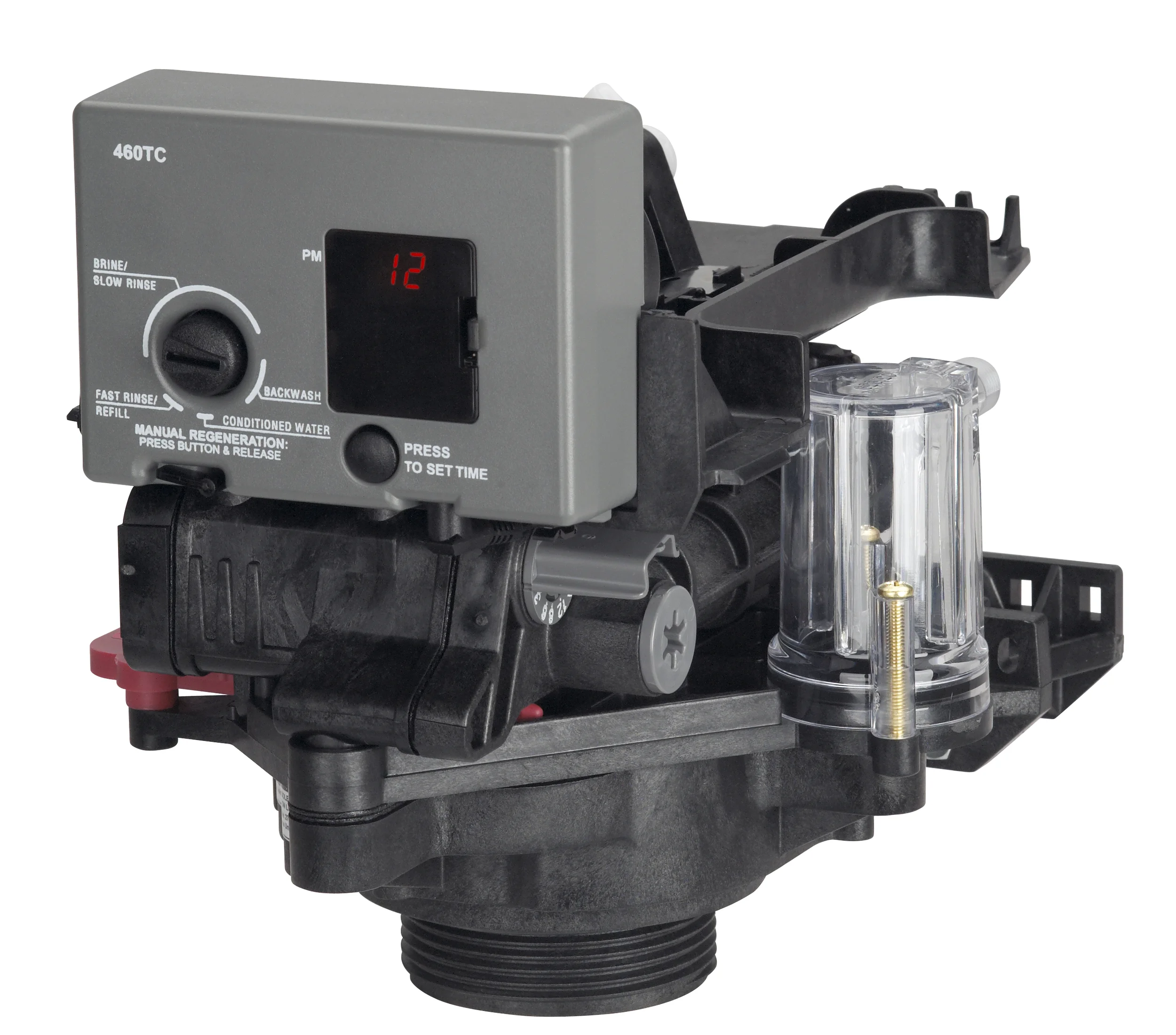

AUTOTROL 255 (less cover)

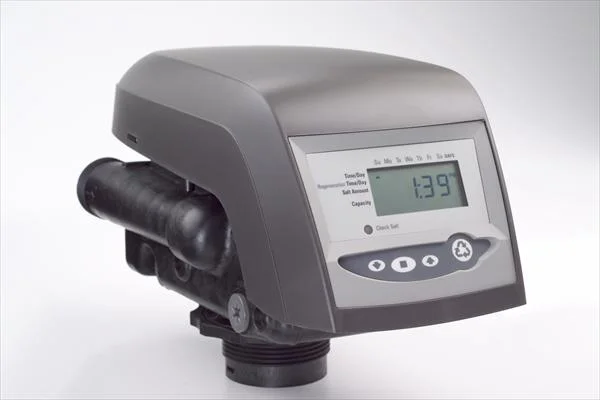

AUTOTROL 268

AUTOTROL 1265 BYPASS

AUTOTROL 1265 BYPASS

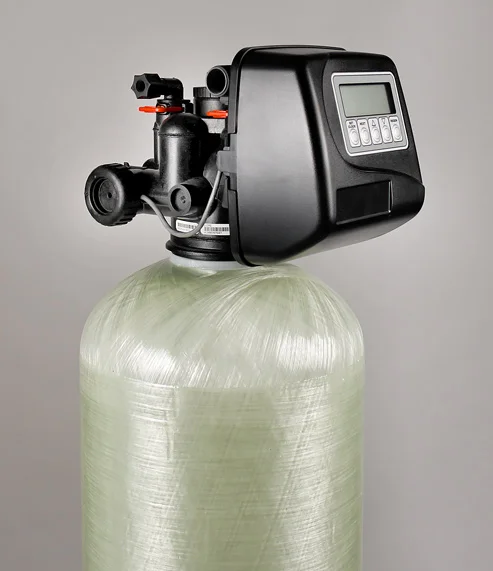

CLACK WS1/WS1.25/WS1.5 VALVES

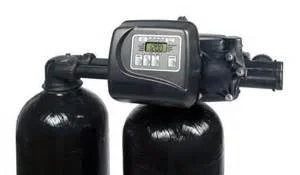

CLACK TWIN TANK VALVE

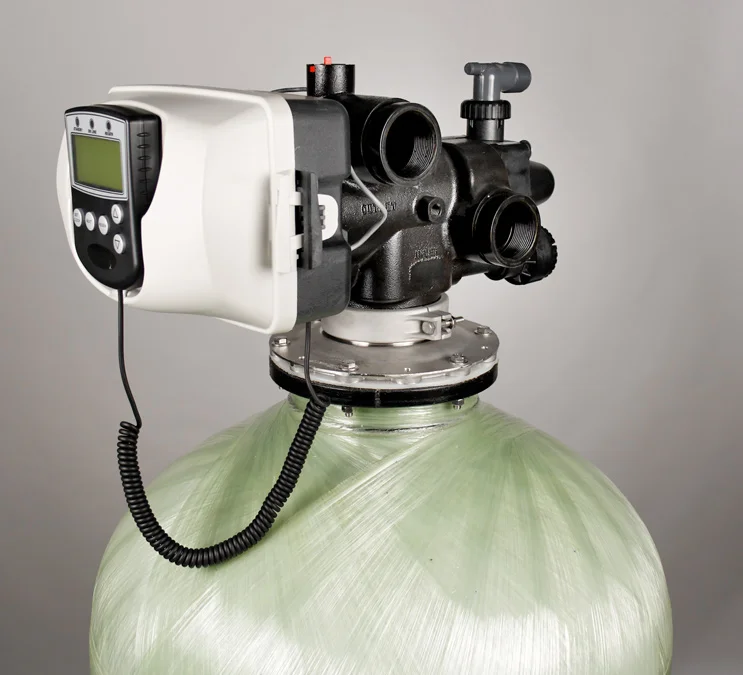

CLACK WS2

CLACK WS2H

CLACK WS3

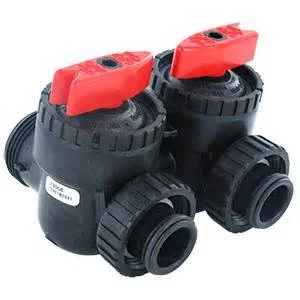

CLACK V3006 BYPASS


  • Continuous service flow rate of 19 GPM with a backwash of 17 GPM

  • Backwash capability accommodates softener tanks up to 16" and filter up to 16" in diameter

  • Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system

2510 spec sheet

2510 service manual


  • Simple mechanical design is easy to use

  • Injector/drain modules containing the brine valve, flow controls, and injector are removable from the valve's exterior

  • 5600 controls are user-friendly and easily programmable

5600 spec sheet

5600 service manual


  • Continuous service flow rate of 20.1 GPM with a backwash of 8.5 GPM

  • Backwash capability accommodates softener tanks up to 16"

  • Regenerates immediately when needed for continuous soft water and regenerates with soft water keeping system clean for optimum operating efficiency and minimum maintenance

9100 spec sheet

9100 service manual


  • Continuous service flow rate of 38 GPM with a backwash of 16 GPM

  • Backwash capability accommodates softener tanks up to 24"

  • Regenerates immediately when needed for continuous soft water and regenerates with soft water keeping system clean for optimum operating efficiency and minimum maintenance

9500 spec sheet

9500 service manual


  • Continuous service flow rate of 26 GPM with a backwash of 25 GPM

  • Backwash capability accommodates softener tanks up to 30" and filter up to 21" in diameter

  • Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system

2750 spec sheet

2750 service manual


  • Continuous service flow rate of 46 GPM with a backwash of 47 GPM

  • Backwash capability accommodates softener tanks up to 36" and filters up to 24" in diameter

  • Designed for single or multiple tank systems

2850 spec sheet

2850 service manual


  • Continuous service flow rate of 106 GPM with a backwash of 36 GPM

  • Backwash capability accommodates softener tanks up to 36" and filter up to 24" in diameter

  • Designed for single or multiple tank systems

2900 spec sheet

2900 service manual



AUTOTROL VALVES


  • Time-tested Duraflow flapper provides frictionless sealing for longer service life

  • Fully adjustable 5 or 8 cycle control for efficient and reliable water treatment system

  • Continuous service flow rate of 15.5 GPM with a backwash of 6 GPM and backwash capability accommodates softener tanks up to 14" and filter up to 10" GPM in diameter

255 spec sheet

255 service manual


  • Performa means performance – large 1" ports for high-flow applications

  • Valve quickly changes from softener to filter application in three easy steps

  • Designed with fewer service parts than any valve of comparable function – longer life, shorter service calls

263/268 spec sheet

263/268 service manual



CLACK VALVES


  • Front panel display for time of day, days until next regeneration, volume

    remaining, current flow rate and total volume used (Totalizer)

  • Double backwash feature offers optimum regeneration, cleaning ability, and efficiency

  • Patented one piece expanding seal spacer stack assembly

WS1 spec  sheet

WS1.25 spec sheet

WS1.5 spec sheet


  • Service flow 28 gpm, backwash flow 15 gpm with meter and bypass installed

  • Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency, backwash and brining ability to 21” diameter tanks

  • Treated/Soft water post fill and regeneration cycles

WS1EE twin spec sheet


  • 2” Top mount control valve suited for commercial/industrial applications

  • Service flow rate of 115 gpm, backwash 80 gpm

  • Four methods to initiate regeneration; meter immediate, meter delayed, time clock delayed or pressure differential

WS2 spec sheet


  • Service flow rate 125 gpm (473 lpm) (28.4 m3/h), Backwash flow rate 125 gpm (473 lpm) (28.4 m3/h)

  • Fully programmable regeneration cycle sequences (maximum 9)

  • 2” top mount or side mount control valve suited for commercial and industrial applications

WS2H spec sheet


  • 3” top mount or side mount control valve suited for commercial and industrial applications

  • Service flow rate 250 gpm (946 lpm) (56.8 m3/h), Backwash flow rate 220 gpm (833 lpm) (50.0 m3/h)

  • Fully programmable regeneration cycle sequences (maximum 9) and fully programmable regeneration cycle times

WS3 spec sheet
